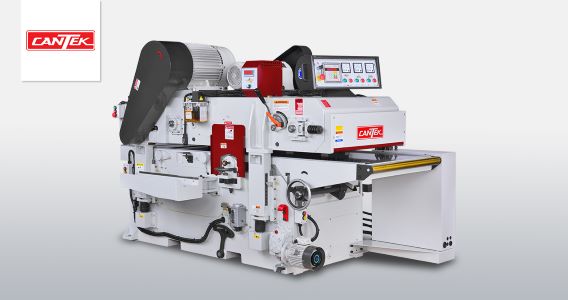

Cantek GT635ARD-8 25″ x 8″ Double Surface Planer THIS ITEM SHIPS FROM MANUFACTURER. PLEASE CONTACT US FOR AVAILABILITY AND FREIGHT COST. Cantek GT635ARD-8 25″ x 8″ Double Surface Planer Features: Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation Heavy-duty cast-iron machine body and table for vibration free cutting Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control 25″ x 8″ capacity as standard thickness capacity Cutterheads are spiral insert type with six (6) rows of carbide inserts (2) driven and (1) idle bed roll for superior feeding of even difficult material Swiveling control panel for more ergonomic access to machine controls Inverter variable speed control with feed speeds from 26 to 80 FPM Easy to access external handwheel adjustment of infeed bed Hard chromed worktable for high wear resistance Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways Section chipbreaker and sectional feed roller before top cutterhead Rubber outfeed top roller to prevent chip marking Over thickness safety shut-off bar across infeed. Ammeter for each motor on control panel to monitor motor load Specifications: Max. working width 25″ Max. working thickness 8″ (16″, 20″, 24″ optional) Min. workpiece length 12.2″ Bottom head motor 20 HP Top planing head motor 25 HP (30 HP optional) Feed motor 5 HP Table elevation motor 1/2 HP Knife dimensions 30mmx12mmx1.5mm (96 pcs per head) Cutterhead speed 5400 RPM Feed speed (variable) 26-80 FPM Machine dimensions (LxWxH) 105″ x 45.1″ x 67.7″ Net weight 6600 lbs Packaging dimensions 109″ x 49″ x 74″ Gross weight 7700 lbs
